PED Requirements

All Bellows supplied by DST are manufactured and certified in accordance with EU PED Legislation and as such carry the relevant CE certification where required.

Size (mm) Axial Compression (mm) Installed Length Effective Area cm² Force to Compress N/mm Part Number
32nb 30 210 15 61 AX1/032/PN16
40nb 30 215 22 78 AX1/040/PN16
50nb 50 233 40 135 AX1/050/PN16
65nb 50 233 62 107 AX1/065/PN16
80nb 50 233 81 295 AX1/080/PN16
100nb 50 233 127 379 AX1/100/PN16
125nb 60 336 196 295 AX1/125/PN16
150nb 60 336 273 355 AX1/150/PN16
200nb 70 372 470 284 AX1/200/PN16
250nb 70 372 700 354 AX1/250/PN16
300nb 70 372 958 420 AX1/300/PN16



The anchor loads generated by using this type of Axial Expansion Compensator are high. A guide bracket with low frictional resistance should be used.

Please note these units are not suitable for use on a drop rod system and need to be suitably guided (e.g. DST 253 Slide Guide or DST 114 Roller Chair and Guide). Please consult the Expansion Compensator Application Guide for positioning of anchor points and subsequent support centres. (See Page 114)

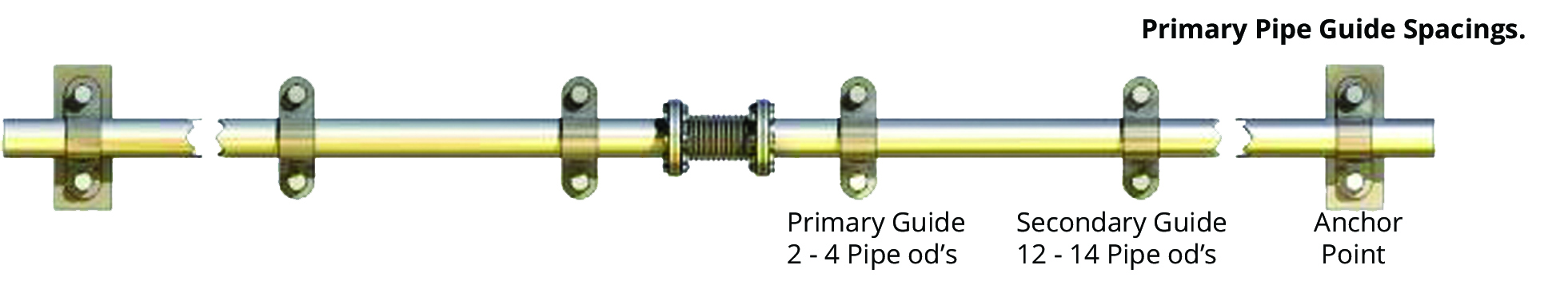

Bellows Diagram
