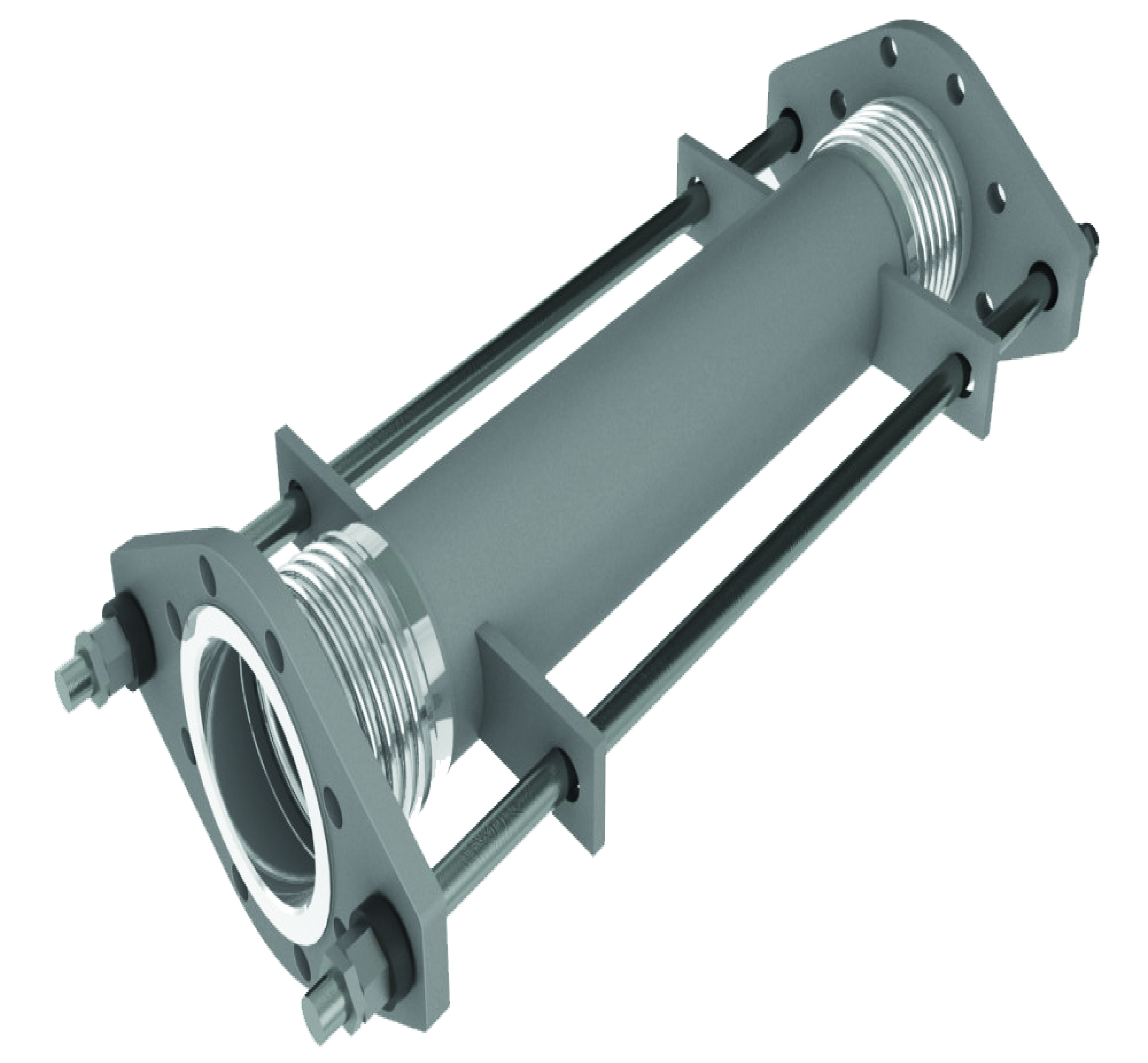

All units are supplied at installation lengths and are pre stressed.
Please note DST Group Ltd can design and supply lateral expansion compensators to accomodate higher system temperatures/pressures and other rates of lateral movement or special dimensions. Please advise at time of enquiry/order the system temperature and pressure to allow correct selection of compensator.
| Size | Installation Length +/- 25 (mm) | Force to Deflect +/- 25mm (N/mm) | Installed Length +/- 50 (mm) | Force to deflect +/- 50 (mm) | Part Number |
|---|---|---|---|---|---|
| 25nb | 500 | 10.7 | 500 | 2.8 | FA1/025/PN16 |
| 32nb/35cu | 350 | 10.7 | 500 | 2.8 | FA1/032/PN16 |
| 40nb/42cu | 350 | 10.7 | 500 | 2.8 | FA1/040/PN16 |
| 50nb/54cu | 350 | 2.53 | 500 | 0.93 | FA1/050/PN16 |
| 65nb/67cu | 350 | 4.68 | 500 | 1.70 | FA1/065/PN16 |
| 80nb/76cu | 350 | 8.94 | 500 | 3.40 | FA1/080/PN16 |
| 100nb/108cu | 350 | 16.95 | 500 | 6.18 | FA1/100/PN16 |
| 125nb/133cu | 500 | 11.21 | 500 | 5.22 | FA1/125/PN16 |
| 150nb/159cu | 500 | 24.23 | 650 | 11.29 | FA1/150/PN16 |
| 200nb | 500 | 45.08 | 700 | 16.96 | FA1/200/PN16 |
| 250nb | 500 | 84.31 | 700 | 31.39 | FA1/250/PN16 |
| Size | Installation Length +/- 75 (mm) | Force to Deflect +/- 75mm (N/mm) | Installed Length +/- 100 (mm) | Force to deflect +/- 100 (mm) | Part Number |
| 25nb | 750 | 1.3 | 900 | 1.3 | FA1/025/PN16 |
| 32nb/35cu | 750 | 1.3 | 900 | 1.3 | FA1/032/PN16 |
| 40nb/42cu | 750 | 1.3 | 900 | 1.3 | FA1/040/PN16 |
| 50nb/54cu | 750 | 0.51 | 900 | 0.33 | FA1/050/PN16 |
| 65nb/67cu | 750 | 0.61 | 900 | 0.40 | FA1/065/PN16 |
| 80nb/76cu | 750 | 1.26 | 900 | 0.83 | FA1/080/PN16 |
| 100nb/108cu | 750 | 2.23 | 900 | 1.45 | FA1/100/PN16 |
| 125nb/133cu | 800 | 3.00 | 1000 | 1.72 | FA1/125/PN16 |
| 150nb/159cu | 800 | 6.50 | 1000 | 3.72 | FA1/150/PN16 |
| 200nb | 900 | 8.78 | 1000 | 6.75 | FA1/200/PN16 |
| 250nb | 900 | 16.19 | 1100 | 9.84 | FA1/250/PN16 |
