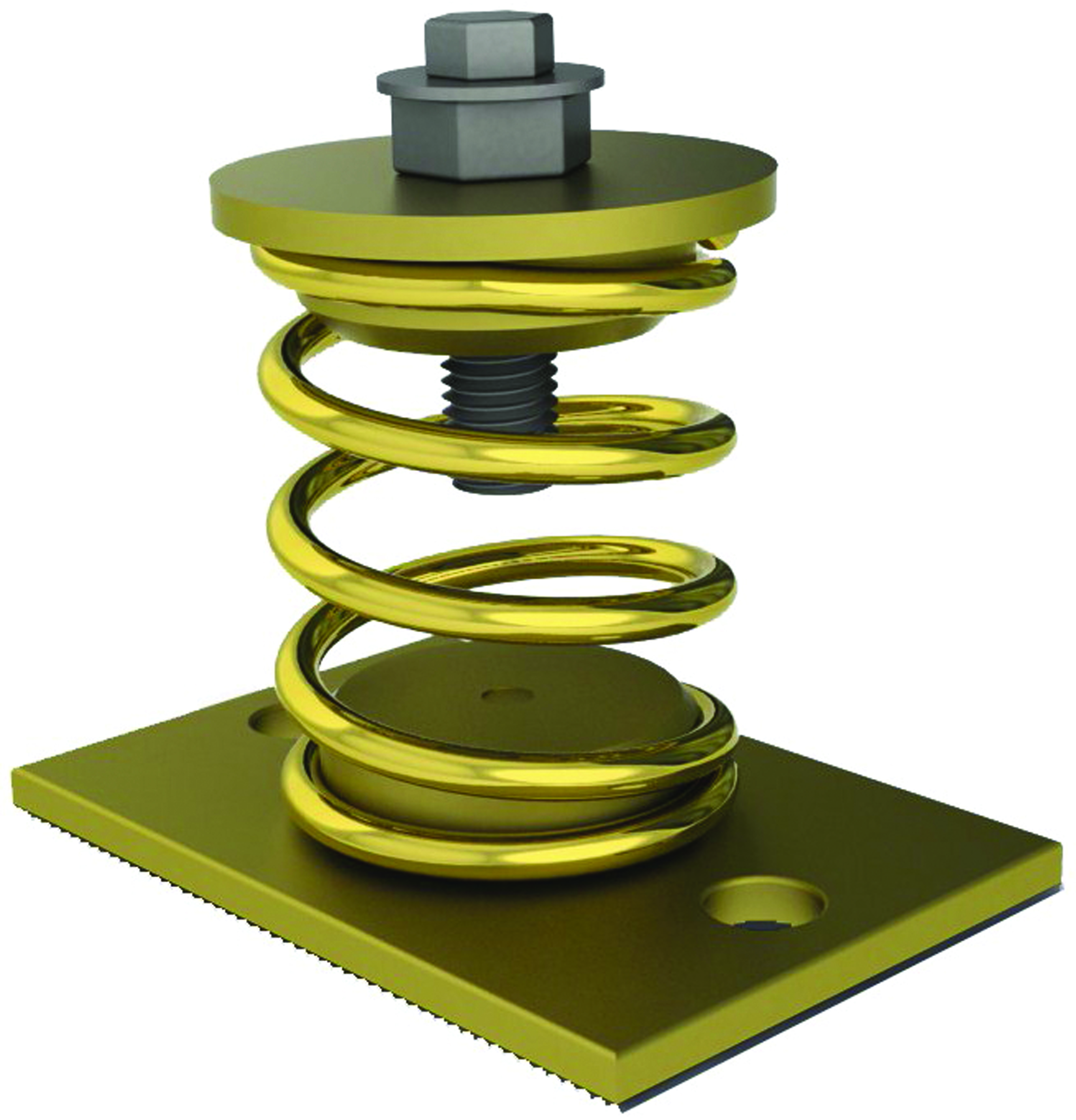

Model Overall Width (mm) Bolt Centres (mm) Bolt Ø Fixing Bolt Ø Weight Range (Kg) Deflection (mm)
OS/0-0050 130 92 M12 M10 11-23 30
OS/0-0080 130 92 M12 M10 18-37 30
OS/0-0130 130 92 M12 M10 30-60 30
OS/0-0200 130 92 M12 M10 45-91 30
OS/0-0300 130 92 M12 M10 68-137 30
OS/0-0500 130 92 M12 M10 114-228 30
OS/0-0630 130 92 M12 M10 148-287 30
OS/0-0800 130 92 M12 M10 182-364 30
OS/0-1100 130 92 M12 M10 250-500 30
OS/0-0425 165 120 M12 M12 97-194 30
OS/0-0600 165 120 M12 M12 136-273 30
OS/0-0750 165 120 M12 M12 170-341 30
OS/0-1000 165 120 M12 M12 227-455 30
OS/0-1400 165 120 M12 M12 318-637 30
OS/0-1700 165 120 M12 M12 386-773 30
OS/0-2000 165 120 M12 M12 455-910 30
OS/0-2400 165 120 M12 M12 545-1091 30



Please Note:

Spring selection should be based upon equipment weight – DST Group Ltd can advise on selection at time of ordering.

Plant and pipework can be loaded unevenly, therefore different spring loads may be required at different locations – DST Group Ltd can advise on selection at time of ordering.

Standard springs and housings are BZP with yellow passivate, other coatings can be offered for external use. Please advise if your application is external.

Springs when fitted should be loaded equally, installing one spring before another will lead to uneven load.
