Size ID (mm) Size NB (cu) Dim A (mm) Bolt Size (mm) Material Width & Thickness (mm)
 17  15  53  8  25 x 3
24 22 60 8  25 x 3
30 28 71 8  25 x 3
37 35 74 8  25 x 3
44 42 94 12  30 x 3
57 54 108 12  30 x 3
70 67 120 12  30 x 3
80 76 130 12  30 x 3
114 108 162 12  30 x 3
135 133 197 14 40 x 3
165 159 223 14 40 x 3

DST 133 Saddle Clamp

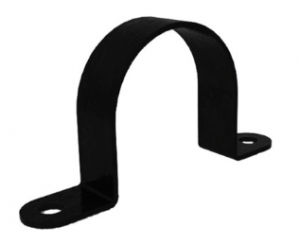

DST 132 Saddle Guide

Construction

  • Mild Steel
  • Nylon Coated Finish

For Use With

  • Copper Tubes
  • Stainless Steel Tubes



Size ID (mm) Size NB (cu) Dim A (mm) Bolt Size (mm) Material Width & Thickness (mm)
15  15  53  8  25 x 3
22 22 60 8  25 x 3
28 28 71 8  25 x 3
35 35 74 8  25 x 3
42 42 94 12  30 x 3
54 54 108 12  30 x 3
67 67 120 12  30 x 3
76 76 130 12  30 x 3
108 108 162 12  30 x 3
133 133 197 14 40 x 3
159 159 223 14 40 x 3
